SpringBoot笔记(六)：SpringBoot开发Maven多模块项目

前言

该Demo使用SpringBoot，基于注解方式来开发基于Maven管理的多模块项目。仅仅算是一个简单的模板，方便大家参考学习的同时，也方便自己后续的直接拿来上手。

该项目用到：SpringBoot(2.1.5.RELEASE)、SpringMVC、MyBatis、Druid连接池、Maven、MySQL、Thymeleaf等。开发工具使用的是：Intellij IDEA

项目介绍

项目主要分为5个模块，分别是：①report-dao ②report-pojo ③report-service ④report-utils ⑤report-web

①通过maven<profile>标签，将该项目分为了develop、test、pre-release、release四个环境，方便打包上线时不同环境数据库参数不同而修改的情况；多数据源配置在application.yml中，通过@xxx@来获取<profile>配置的数据

②从架构方向考虑，pom.xml尽量做到了最优。可以通过Maven命令：mvn dependency:tree 来查看依赖关系

③引入MyBatis自动生成代码插件；

④引入多个数据源，通过druid连接池来管理；

⑤*.html后缀管理，目前通过@RequestMapping("xxx.html")来唯一确定缀的，使用yml或者Config.java来配置，虽然满足了后缀管理，但是静态资源无法加载，目前没找到好的办法，后续继续研究，你们有什么方法吗?我们可以一起研讨，谢谢；

⑥SpringBoot不建议使用JSP来开发，推荐使用Thymeleaf、FreeMarker等。本项目配置支持Thymeleaf开发；

⑦项目添加Intellij IDEA热部署支持，满足开发者实时调试。如需配置，可参考：3.Springboot项目在Intellij IDEA中实现热部署

⑧还有AOP，事务，Redis等其他常用的，后续还会陆续加入使用

彼此之间的依赖关系：web依赖service，service依赖dao，dao依赖pojo和until，因为Maven依赖传递，所以web，service等也会间接依赖pojo和until模块。如下为结构图：

SpringBoot笔记(六)：SpringBoot开发Maven多模块项目插图

POM设计

为了尽量降低各个模块彼此之间的联系，所有父pom使用了<dependencyManagement>来管理项目中使用到的大部分jar包。

如果你不知道该标签是用来干嘛的呢，那么这里就简单来说一下，主要有两点：

①该标签主要从来管理jar包，在父pom中定义的该标签，你会发现好多没用的jar包都在父pom中定义了，太繁琐占空间。切记仅仅只是一个声明罢了，此处并不会使用到这些jar包。

②父pom使用该标签，直接声明版本号。在子pom中使用时，则不需要再声明版本号，仅仅<grupId>和<artifactedId>即可。它会自动使用过父pom使用的版本号。方便以后技术版本的统一变更，这就是为什么要用该标签。

总结：就是方便统一管理。

<!-- 1.父pom -->
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.demo</groupId>
    <artifactId>bi-report</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>pom</packaging>

    <modules>
        <module>report-dao</module>
        <module>report-service</module>
        <module>report-pojo</module>
        <module>report-web</module>
        <module>report-utils</module>
    </modules>
    <!-- 父pom对很多jar都进行了声明，仅仅只是声明而已，方便后续的管理-->
    <properties>
        <springboot.version>2.1.5.RELEASE</springboot.version>
        <springboot.log4j.version>1.3.8.RELEASE</springboot.log4j.version>
        <springboot.mybatis.version>1.3.0</springboot.mybatis.version>
        <mysql.connector.version>5.1.34</mysql.connector.version>
        <druid.version>1.1.9</druid.version>
        <junit.version>3.8.1</junit.version>
        <nekohtml.version>1.9.18</nekohtml.version>
        <commons.lang3.version>3.4</commons.lang3.version>
    </properties>

    <dependencyManagement>
        <dependencies>
            <!-- 为什么此处使用spring-boot-dependencies？答:辅助dependencyManagement,方便管理 -->
            <!-- 请参考：https://blog.csdn.net/lzb348110175/article/details/90345925 -->
            <!-- 添加springboot支持 -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${springboot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <!-- 添加springboot 热部署依赖 -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-devtools</artifactId>
                <version>${springboot.version}</version>
                <optional>true</optional>
            </dependency>
            <!-- springboot整合mybatis -->
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>${springboot.mybatis.version}</version>
            </dependency>
            <!-- mysql驱动 -->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql.connector.version}</version>
            </dependency>
            <!--springboot整合druid-->
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid-spring-boot-starter</artifactId>
                <version>${druid.version}</version>
            </dependency>
            <!--springboot整合log4j-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-log4j</artifactId>
                <version>${springboot.log4j.version}</version>
            </dependency>
            <!--junit测试-->
            <dependency>
                <groupId>junit</groupId>
                <artifactId>junit</artifactId>
                <version>${junit.version}</version>
                <scope>test</scope>
            </dependency>
            <!-- 不严厉H5-->
            <dependency>
                <groupId>net.sourceforge.nekohtml</groupId>
                <artifactId>nekohtml</artifactId>
                <version>${nekohtml.version}</version>
            </dependency>
            <!-- common-lang3工具包-->
            <dependency>
                <groupId>org.apache.commons</groupId>
                <artifactId>commons-lang3</artifactId>
                <version>${commons.lang3.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
</project>

<!-- report-web的pom.xml -->
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <artifactId>bi-report</artifactId>
        <groupId>com.demo</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <groupId>com.demo</groupId>
    <artifactId>report-web</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>war</packaging>
    <name>report-web</name>
    <description>Divided Module Demo project for Spring Boot</description>

    <properties>
        <java.version>1.8</java.version>
    </properties>

    <!-- 如下jar包,在web工程会用到,用不到的一律不依赖，做到最优 -->
    <dependencies>
        <!--springboot整合web模块-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <exclusions> <!-- 排除自带的logging包,换用log4j,做到项目最优-->
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-logging</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <!-- 单元测试依赖 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!-- web层依赖service-->
        <dependency>
            <groupId>com.demo</groupId>
            <artifactId>report-service</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <!-- springboot添加thymeleaf支持 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <!-- springboot添加热部署支持 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
        </dependency>
    </dependencies>

    <!-- profiles标签的使用，方便在开发不同环境之间来回切换 -->
    <profiles>
        <!-- 开发环境 -->
        <profile>
            <id>develop</id>
            <properties>
                <master.driver.className>com.mysql.jdbc.Driver</master.driver.className>
                <master.jdbc.url>jdbc:mysql://192.168.91.91:3306/test?useUnicode=true&amp;characterEncoding=UTF-8&amp;allowMultiQueries=true</master.jdbc.url>
                <master.username>root</master.username>
                <master.password>111111</master.password>
            </properties>
            <activation>
                <activeByDefault>true</activeByDefault>
            </activation>
        </profile>
        <!-- 测试环境 -->
        <profile>
            <id>test</id>
            <properties>
                <master.driver.className>com.mysql.jdbc.Driver</master.driver.className>
                <master.jdbc.url>jdbc:mysql://192.168.91.92:3306/test?useUnicode=true&amp;characterEncoding=UTF-8&amp;allowMultiQueries=true</master.jdbc.url>
                <master.username>root</master.username>
                <master.password>222222</master.password>
            </properties>
        </profile>
        <!-- 预发布环境 -->
        <profile>
            <id>pre-release</id>
            <properties>
                <master.driver.className>com.mysql.jdbc.Driver</master.driver.className>
                <master.jdbc.url>jdbc:mysql://192.168.91.93:3306/test?useUnicode=true&amp;characterEncoding=UTF-8&amp;allowMultiQueries=true</master.jdbc.url>
                <master.username>root</master.username>
                <master.password>333333</master.password>
            </properties>
        </profile>
        <!-- 线上环境 -->
        <profile>
            <id>release</id>
            <properties>
                <master.driver.className>com.mysql.jdbc.Driver</master.driver.className>
                <master.jdbc.url>jdbc:mysql://192.168.91.94:3306/test?useUnicode=true&amp;characterEncoding=UTF-8&amp;allowMultiQueries=true</master.jdbc.url>
                <master.username>root</master.username>
                <master.password>444444</master.password>
            </properties>
        </profile>
    </profiles>

    <build>
        <!--环境切换必须配置:如果不设置resource 会导致application.yaml中的@@找不到pom文件中的配置-->
        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <filtering>true</filtering>
            </resource>
        </resources>

        <plugins>
            <!-- 解决maven install时提示找不到web.xml文件异常 -->
            <!-- 异常信息:Failed to execute goal org.apache.maven.plugins:maven-war-plugin:2.2:war (default-war) on project report-web: Error assembling WAR: webxml attribute is required (or pre-existing WEB-INF/web.xml if executing in update mode) -> [Help 1] -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-war-plugin</artifactId>
                <version>2.4</version>
                <configuration>
                    <failOnMissingWebXml>false</failOnMissingWebXml>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

<!-- report-service的pom.xml -->
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>bi-report</artifactId>
        <groupId>com.demo</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>report-service</artifactId>

    <!-- service层依赖utils,本来可以不再service层依赖的，但是基于接口开发，dao层完全用不到utils工具包，pojo也用不到，所以在service层依赖是最合适的。通过Maven依赖传递，web层也会变向依赖utils工具包 -->
    <dependencies>
        <!--依赖dao、utils-->
        <dependency>
            <groupId>com.demo</groupId>
            <artifactId>report-dao</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>com.demo</groupId>
            <artifactId>report-utils</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

</project>

<!-- report-dao的pom.xml -->
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>bi-report</artifactId>
        <groupId>com.demo</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>report-dao</artifactId>

    <!-- dao层需要与数据库进行交互，所以在dao层才依赖jdbc、mybatis、druid、mysql驱动，而不是每一个模块都依赖这些，对那些模块也没用的。log4j日志包每个模块会用到(pojo除外)，所以在dao层依赖，其他模块通过依赖传递来获取。-->
    <dependencies>
        <!--dao层依赖pojo-->
        <dependency>
            <groupId>com.demo</groupId>
            <artifactId>report-pojo</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <!--springboot整合jdbc-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <!--springboot整合mybatis-->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
        <!-- springboot整合log4j -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-log4j</artifactId>
        </dependency>
        <!--springboot整合druid-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
        </dependency>
        <!--mysql驱动-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <!-- 该插件也是只在dao层用到，所以在此处引入即可 -->
            <!-- mybatis generator 自动生成代码插件 -->
            <plugin>
                <groupId>org.mybatis.generator</groupId>
                <artifactId>mybatis-generator-maven-plugin</artifactId>
                <version>1.3.2</version>
                <configuration>
                    <configurationFile>${basedir}/src/main/resources/generator/generatorConfig.xml</configurationFile>
                    <overwrite>true</overwrite>
                    <verbose>true</verbose>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

<!-- report-pojo的pom.xml。什么都没有依赖 -->
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>bi-report</artifactId>
        <groupId>com.demo</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>report-pojo</artifactId>

</project>

<!-- report-utils的pom.xml -->
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>bi-report</artifactId>
        <groupId>com.demo</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>report-utils</artifactId>

    <dependencies>
        <!--commons-lang3工具包-->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
        </dependency>
    </dependencies>

</project>

具体代码实现部分(部分)

package com.report.controller;

import com.report.pojo.User;
import com.report.service.inter.IUserService;
import com.report.utils.StringUtil;
import com.report.vo.Constants;
import com.report.vo.ResultData;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.servlet.ModelAndView;

import javax.annotation.Resource;
import java.util.List;

/**
 * web模块Controller
 */
@Controller
@RequestMapping("user")
public class UserController{

    @Resource(name="userService")
    private IUserService userService;

    /**
     * 获取用户信息
     */
    @RequestMapping("queryUser.htm")
    @ResponseBody
    public ResultData<List<User>> queryUser(){
        ResultData<List<User>> result = new ResultData<List<User>>();
        List<User> data = null;
        try{
            data = userService.queryUser();
        }catch (Exception e){
            result.setCode(Constants.DATA_QUERY_EXCEPTION);
            result.setMessage(Constants.DATA_QUERY_EXCEPTION_MSG);
        }
        result.setData(data);
        return result;
    }

    /**
     * 获取用户信息[直接返回到页面]
     * @param view
     * @return
     */
    @RequestMapping("getUser.htm")
    public ModelAndView getUser(ModelAndView view){
        view.setViewName("index");
        //调用report-utils中的方法
        String nm = StringUtil.firstAlphabetUpperCase("Mr.Liu");
        System.out.println(nm);
        List<User> data = userService.queryUser();
        view.addObject("userList",data);
        return view;
    }

}

package com.report.service.inter;

import com.report.pojo.User;
import java.util.List;

/**
 * 用户Service接口层
 */
public interface IUserService {
    /**
     * 查询用户信息
     */
    List<User> queryUser();
}

package com.report.service.impl;

import com.report.dao.master.UserMapper;
import com.report.pojo.User;
import com.report.pojo.UserExample;
import com.report.service.inter.IUserService;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;
import java.util.List;

/**
 * 用户Service实现类
 */
@Service("userService")
public class UserServiceImpl implements IUserService {

    @Resource(name = "userDao")
    private UserMapper userDao;

    /**
     * 查询用户信息
     */
    public List<User> queryUser() {
        UserExample userEx = new UserExample();
        userEx.createCriteria().andIdIsNotNull();
        return userDao.selectByExample(userEx);
    }
}

package com.report.dao.master;

import com.report.pojo.User;
import com.report.pojo.UserExample;
import java.util.List;
import org.apache.ibatis.annotations.Param;
import org.springframework.stereotype.Repository;

/**
 * dao层
 */
@Repository("userDao")
public interface UserMapper {
    int countByExample(UserExample example);

    int deleteByExample(UserExample example);

    int deleteByPrimaryKey(Integer id);

    int insert(User record);

    int insertSelective(User record);

    List<User> selectByExample(UserExample example);

    User selectByPrimaryKey(Integer id);

    int updateByExampleSelective(@Param("record") User record, @Param("example") UserExample example);

    int updateByExample(@Param("record") User record, @Param("example") UserExample example);

    int updateByPrimaryKeySelective(User record);

    int updateByPrimaryKey(User record);
}

<!-- xmlSql部分(generator自动生成的Sql) -->
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.report.dao.master.UserMapper" >
  <resultMap id="BaseResultMap" type="com.report.pojo.User" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="username" property="username" jdbcType="VARCHAR" />
    <result column="age" property="age" jdbcType="INTEGER" />
    <result column="address" property="address" jdbcType="VARCHAR" />
  </resultMap>
  <sql id="Example_Where_Clause" >
    <where >
      <foreach collection="oredCriteria" item="criteria" separator="or" >
        <if test="criteria.valid" >
          <trim prefix="(" suffix=")" prefixOverrides="and" >
            <foreach collection="criteria.criteria" item="criterion" >
              <choose >
                <when test="criterion.noValue" >
                  and ${criterion.condition}
                </when>
                <when test="criterion.singleValue" >
                  and ${criterion.condition} #{criterion.value}
                </when>
                <when test="criterion.betweenValue" >
                  and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
                </when>
                <when test="criterion.listValue" >
                  and ${criterion.condition}
                  <foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," >
                    #{listItem}
                  </foreach>
                </when>
              </choose>
            </foreach>
          </trim>
        </if>
      </foreach>
    </where>
  </sql>
  <sql id="Update_By_Example_Where_Clause" >
    <where >
      <foreach collection="example.oredCriteria" item="criteria" separator="or" >
        <if test="criteria.valid" >
          <trim prefix="(" suffix=")" prefixOverrides="and" >
            <foreach collection="criteria.criteria" item="criterion" >
              <choose >
                <when test="criterion.noValue" >
                  and ${criterion.condition}
                </when>
                <when test="criterion.singleValue" >
                  and ${criterion.condition} #{criterion.value}
                </when>
                <when test="criterion.betweenValue" >
                  and ${criterion.condition} #{criterion.value} and #{criterion.secondValue}
                </when>
                <when test="criterion.listValue" >
                  and ${criterion.condition}
                  <foreach collection="criterion.value" item="listItem" open="(" close=")" separator="," >
                    #{listItem}
                  </foreach>
                </when>
              </choose>
            </foreach>
          </trim>
        </if>
      </foreach>
    </where>
  </sql>
  <sql id="Base_Column_List" >
    id, username, age, address
  </sql>
  <select id="selectByExample" resultMap="BaseResultMap" parameterType="com.report.pojo.UserExample" >
    select
    <if test="distinct" >
      distinct
    </if>
    'true' as QUERYID,
    <include refid="Base_Column_List" />
    from user
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
    <if test="orderByClause != null" >
      order by ${orderByClause}
    </if>
  </select>
  <select id="selectByPrimaryKey" resultMap="BaseResultMap" parameterType="java.lang.Integer" >
    select
    <include refid="Base_Column_List" />
    from user
    where id = #{id,jdbcType=INTEGER}
  </select>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer" >
    delete from user
    where id = #{id,jdbcType=INTEGER}
  </delete>
  <delete id="deleteByExample" parameterType="com.report.pojo.UserExample" >
    delete from user
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
  </delete>
  <insert id="insert" parameterType="com.report.pojo.User" >
    insert into user (id, username, age,
      address)
    values (#{id,jdbcType=INTEGER}, #{username,jdbcType=VARCHAR}, #{age,jdbcType=INTEGER},
      #{address,jdbcType=VARCHAR})
  </insert>
  <insert id="insertSelective" parameterType="com.report.pojo.User" >
    insert into user
    <trim prefix="(" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        id,
      </if>
      <if test="username != null" >
        username,
      </if>
      <if test="age != null" >
        age,
      </if>
      <if test="address != null" >
        address,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        #{id,jdbcType=INTEGER},
      </if>
      <if test="username != null" >
        #{username,jdbcType=VARCHAR},
      </if>
      <if test="age != null" >
        #{age,jdbcType=INTEGER},
      </if>
      <if test="address != null" >
        #{address,jdbcType=VARCHAR},
      </if>
    </trim>
  </insert>
  <select id="countByExample" parameterType="com.report.pojo.UserExample" resultType="java.lang.Integer" >
    select count(*) from user
    <if test="_parameter != null" >
      <include refid="Example_Where_Clause" />
    </if>
  </select>
  <update id="updateByExampleSelective" parameterType="map" >
    update user
    <set >
      <if test="record.id != null" >
        id = #{record.id,jdbcType=INTEGER},
      </if>
      <if test="record.username != null" >
        username = #{record.username,jdbcType=VARCHAR},
      </if>
      <if test="record.age != null" >
        age = #{record.age,jdbcType=INTEGER},
      </if>
      <if test="record.address != null" >
        address = #{record.address,jdbcType=VARCHAR},
      </if>
    </set>
    <if test="_parameter != null" >
      <include refid="Update_By_Example_Where_Clause" />
    </if>
  </update>
  <update id="updateByExample" parameterType="map" >
    update user
    set id = #{record.id,jdbcType=INTEGER},
      username = #{record.username,jdbcType=VARCHAR},
      age = #{record.age,jdbcType=INTEGER},
      address = #{record.address,jdbcType=VARCHAR}
    <if test="_parameter != null" >
      <include refid="Update_By_Example_Where_Clause" />
    </if>
  </update>
  <update id="updateByPrimaryKeySelective" parameterType="com.report.pojo.User" >
    update user
    <set >
      <if test="username != null" >
        username = #{username,jdbcType=VARCHAR},
      </if>
      <if test="age != null" >
        age = #{age,jdbcType=INTEGER},
      </if>
      <if test="address != null" >
        address = #{address,jdbcType=VARCHAR},
      </if>
    </set>
    where id = #{id,jdbcType=INTEGER}
  </update>
  <update id="updateByPrimaryKey" parameterType="com.report.pojo.User" >
    update user
    set username = #{username,jdbcType=VARCHAR},
      age = #{age,jdbcType=INTEGER},
      address = #{address,jdbcType=VARCHAR}
    where id = #{id,jdbcType=INTEGER}
  </update>
</mapper>

<!-- View层：Index.html -->
<!DOCTYPE html>
<html xmlns:th="http://www.thymeleaf.org">
    <head>
        <meta charset="UTF-8">
        <title>Index页面</title>
        <link href="../static/plugins/bootstrap/css/bootstrap.min.css" rel="stylesheet">
        <link href="../static/plugins/dataTables/css/dataTables.bootstrap.css" rel="stylesheet">
        <link href="../static/css/style.min.css" rel="stylesheet">

        <script src="../static/js/jquery/jquery.min.js"></script>
        <script src="../static/plugins/bootstrap/js/bootstrap.min.js"></script>
        <script src="../static/plugins/dataTables/js/jquery.dataTables.js"></script>
        <script src="../static/plugins/dataTables/js/dataTables.bootstrap.js"></script>

    </head>
    <body>
        <!-- 循环遍历 -->
        <div class="wrapper wrapper-content">
            <table class="table table-striped table-bordered table-hover dataTables-example">
                <thead>
                    <tr>
                        <th>id</th>
                        <th>name</th>
                        <th>age</th>
                        <th>address</th>
                    </tr>
                </thead>
                <tbody>
                    <tr th:each="user:${userList}">
                        <td th:text="${user.id}"></td>
                        <td th:text="${user.username}"></td>
                        <td th:text="${user.age}"></td>
                        <td th:text="${user.address}"></td>
                    </tr>
                </tbody>
            </table>
        </div>
    </body>

    <script>
        $(document).ready(function () {
            $("table").dataTable();
        });
    </script>
</html>

实现效果

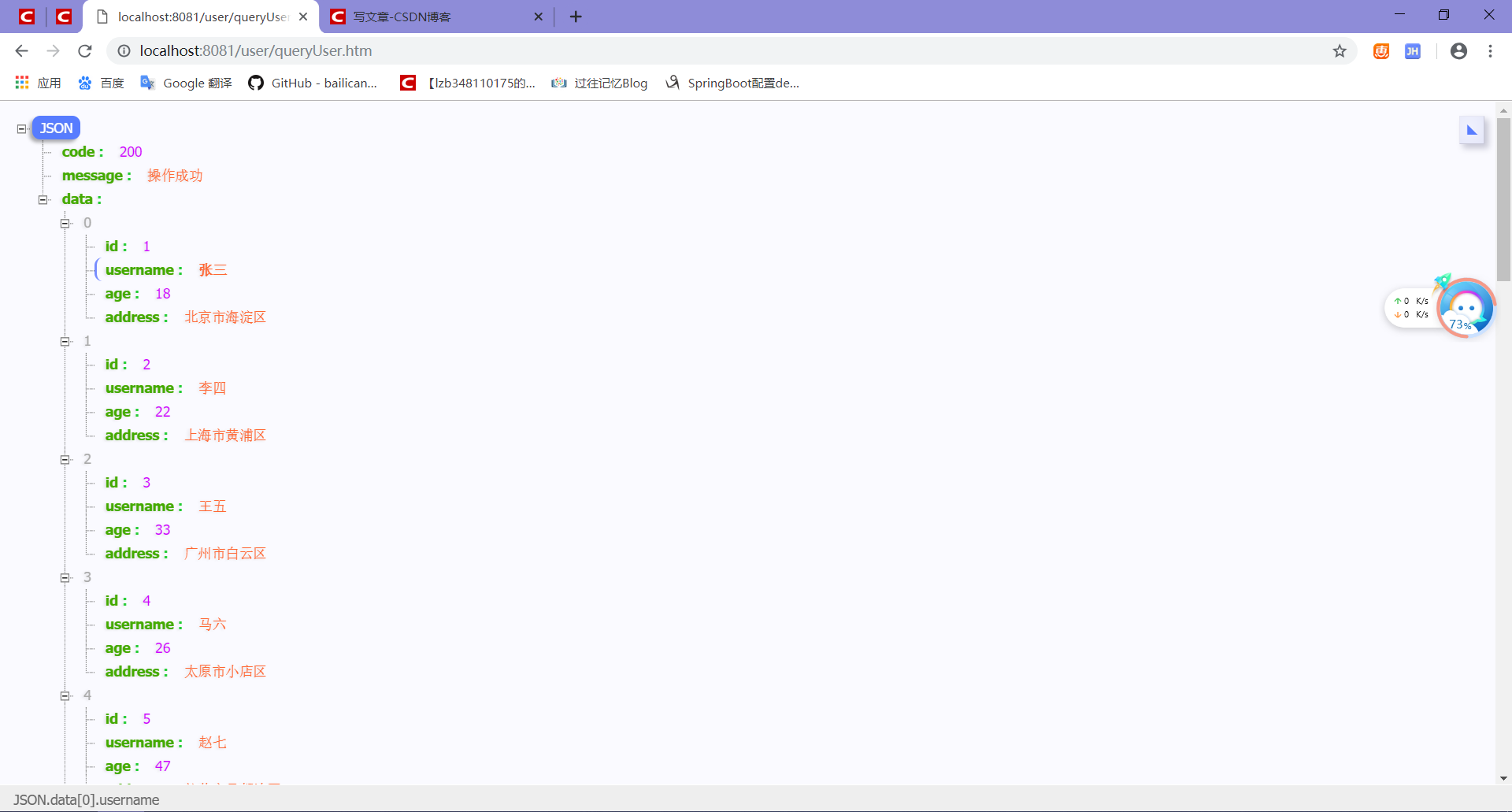

①接口开发

SpringBoot笔记(六)：SpringBoot开发Maven多模块项目插图1

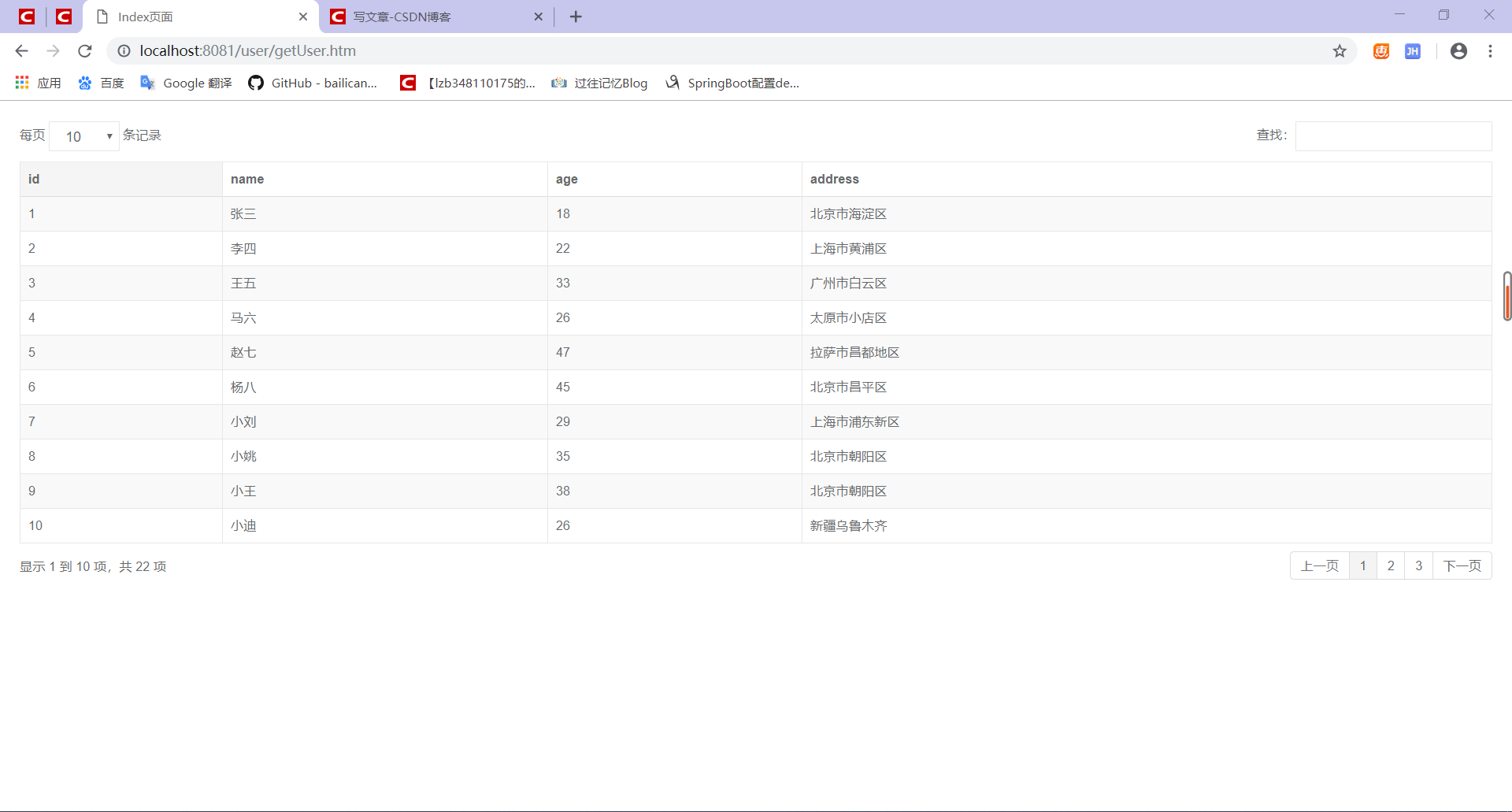

②表现层展示

SpringBoot笔记(六)：SpringBoot开发Maven多模块项目插图2

如有需要Demo实例，有不懂的地方等，可联系我。demo仅作参考使用

如有错误的地方，也请您能够帮我指出，我们一起学习，一起进步，谢谢大家。

SpringBoot笔记(六)：SpringBoot开发Maven多模块项目

前言

项目介绍

POM设计

具体代码实现部分(部分)

实现效果

相关推荐

一个分享Java & Python知识的社区
