SpringBoot笔记(三)：基于注解，实现多数据源切换

2021-10-26 分类：未分类 阅读(322)

       本文讲解：SpringBoot + Druid 连接池 + Transcation(事务)，基于注解方式，来完成多数据源的切换。该Demo只需要修改一下.yml文件中的MySQL部分，即可运行。

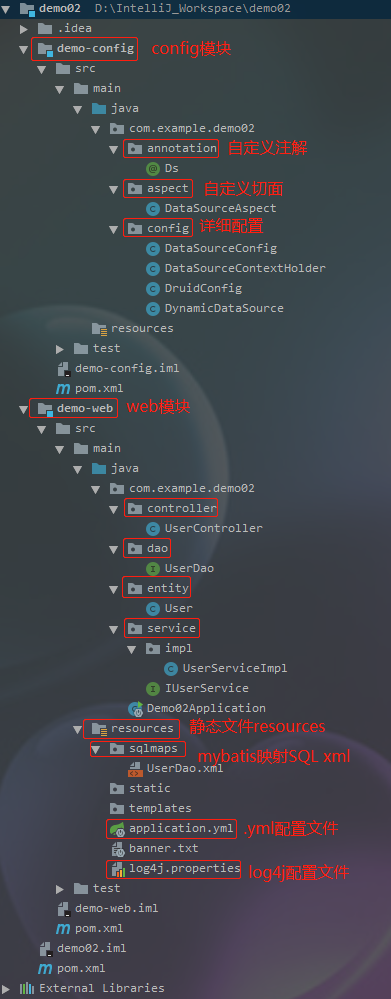

结构图如下：

SpringBoot笔记(三)：基于注解，实现多数据源切换插图

demo-config模块

1.自定义注解

package com.example.demo02.annotation;

import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

/**
 * 自定义注解
 */
@Retention(RetentionPolicy.RUNTIME)
@Target({ElementType.METHOD})
public @interface Ds {
   String value();
   //String value() default "ds1";  //此处可默认某个数据源
}

2.切面编写

package com.example.demo02.aspect;

import com.example.demo02.annotation.Ds;
import com.example.demo02.config.DataSourceContextHolder;
import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.annotation.*;
import org.aspectj.lang.reflect.MethodSignature;
import org.springframework.stereotype.Component;

import java.lang.reflect.Method;

@Aspect
@Component
public class DataSourceAspect {

    @Pointcut("@annotation(com.example.demo02.annotation.Ds)")
    public void pointcutConfig(){

    }

    @Before("pointcutConfig()")
    public void before(JoinPoint joinPoint){
        //获得当前访问的class
        Class<?> className = joinPoint.getTarget().getClass();
        //获得访问的方法名
        String methodName = joinPoint.getSignature().getName();
        //得到方法的参数的类型
        Class[] argClass = ((MethodSignature)joinPoint.getSignature()).getParameterTypes();

        String dataSource = null;
        try {
            // 得到访问的方法对象
            Method method = className.getMethod(methodName, argClass);
            // 判断是否存在@DS注解
            if (method.isAnnotationPresent(Ds.class)) {
                Ds annotation = method.getAnnotation(Ds.class);
                // 取出注解中的数据源名
                dataSource = annotation.value();
            }
        } catch (Exception e) {
            e.printStackTrace();
        }
        // 切换数据源
        DataSourceContextHolder.setDataSource(dataSource);
    }

    @After("pointcutConfig()")
    public void after(JoinPoint joinPoint){
        DataSourceContextHolder.clearDataSource();
    }
}

3.config详细配置

  1.Druid连接池配置 DruidConfig

package com.example.demo02.config;

import com.alibaba.druid.support.http.StatViewServlet;
import com.alibaba.druid.support.http.WebStatFilter;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * Druid连接池配置文件
 */
@Configuration
public class DruidConfig {

    //配置 Druid 的监控
    /**
     * 1.配置一个管理后台的Servlet
     */
    @Bean
    public ServletRegistrationBean startViewServlet(){
        ServletRegistrationBean servletRegistrationBean = new ServletRegistrationBean(new StatViewServlet(),"/druid/*");
        // IP白名单
        servletRegistrationBean.addInitParameter("allow","127.0.0.1");
        // IP黑名单(共同存在时，deny优先于allow)
        servletRegistrationBean.addInitParameter("deny","127.0.0.1");
        //控制台管理用户
        servletRegistrationBean.addInitParameter("loginUsername","admin");
        servletRegistrationBean.addInitParameter("loginPassword","123456");
        //是否能够重置数据
        servletRegistrationBean.addInitParameter("resetEnable","false");
        return servletRegistrationBean;
    }

    /**
     * 配置一个 Web 监控的 Filter
     * @return
     */
    @Bean
    public FilterRegistrationBean statFilter(){
        FilterRegistrationBean filterRegistrationBean = new FilterRegistrationBean(new WebStatFilter());
        //添加过滤规则
        filterRegistrationBean.addUrlPatterns("/*");
        //忽略过滤的格式
        filterRegistrationBean.addInitParameter("exclusions","*.js,*.gif,*.jpg,*.png,*.css,*.ico,/druid/*");
        return filterRegistrationBean;
    }
}

  2.DynamicDataSource类

package com.example.demo02.config;

import org.springframework.jdbc.datasource.lookup.AbstractRoutingDataSource;

public class DynamicDataSource extends AbstractRoutingDataSource {
    @Override
    protected Object determineCurrentLookupKey() {
        return DataSourceContextHolder.getDataSource();
    }
}

  3.DataSourceContextHolder类

package com.example.demo02.config;

import org.apache.log4j.Logger;

public class DataSourceContextHolder {

    private static Logger LOG = Logger.getLogger(DataSourceContextHolder.class);

    private static final ThreadLocal<String> contextHolder = new ThreadLocal<>();

    //设置数据源名称
    public static void setDataSource(String dataSource){
        LOG.info("切换到{"+dataSource+"}数据源");
        contextHolder.set(dataSource);
    }

    public static String getDataSource(){
        return contextHolder.get();
    }

    //清除数据源
    public static void clearDataSource(){
        contextHolder.remove();
    }
}

  4.多数据源配置 DataSourceConfig类

package com.example.demo02.config;

import com.alibaba.druid.spring.boot.autoconfigure.DruidDataSourceBuilder;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;
import org.springframework.transaction.PlatformTransactionManager;

import javax.sql.DataSource;
import java.util.HashMap;
import java.util.Map;

/**
 * 多数据源配置
 */
@Configuration
public class DataSourceConfig {

    /**
     *  数据源1
     */
    @Bean(name = "ds1")
    @ConfigurationProperties(prefix = "spring.datasource.druid.ds1")
    public DataSource Ds1(){
        return DruidDataSourceBuilder.create().build();
    }

    /**
     * 数据源2
     */
    @Bean(name = "ds2")
    @ConfigurationProperties(prefix = "spring.datasource.druid.ds2")
    public DataSource Ds2(){
        return DruidDataSourceBuilder.create().build();
    }

    /**
     * 数据源切换: 通过AOP在不同数据源之间动态切换
     */
    @Primary
    @Bean
    public DataSource dynamicDataSource(){

        DynamicDataSource dynamicDataSource = new DynamicDataSource();
        //设置默认数据源
        dynamicDataSource.setDefaultTargetDataSource(Ds1());
        //配置多数据源
        Map<Object,Object> dsMap = new HashMap<>();
        dsMap.put("ds1",Ds1());
        dsMap.put("ds2",Ds2());

        dynamicDataSource.setTargetDataSources(dsMap);
        return dynamicDataSource;
    }

    /**
     * 配置@Transactional注解事务
     * @return
     */
    @Bean
    public PlatformTransactionManager transactionManager() {
        return new DataSourceTransactionManager(dynamicDataSource());
    }
}

4.demo-config模块 pom依赖

<dependencies>
    <!-- springboot-aop -->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-aop</artifactId>
    </dependency>
    <!-- springboot-jdbc -->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-jdbc</artifactId>
    </dependency>

    <!--springboot整合log4j-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-log4j</artifactId>
        <version>1.3.8.RELEASE</version>
    </dependency>

    <!-- druid -->
    <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid-spring-boot-starter</artifactId>
        <version>1.1.20</version>
    </dependency>

</dependencies>

demo-web模块

1.Controller层

package com.example.demo02.controller;

import com.example.demo02.entity.User;
import com.example.demo02.service.IUserService;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import javax.annotation.Resource;
import java.util.List;

@Controller
@RequestMapping("user")
public class UserController {

    @Resource(name = "userService")
    public IUserService userService;

    @RequestMapping("findDs1AllUser")
    @ResponseBody
    public List<User> findDs1AllUser(){
        List<User> user = this.userService.findDs1AllUser();
        return user;
    }

    @RequestMapping("findDs2AllUser")
    @ResponseBody
    public List<User> findDs2AllUser(){
        List<User> user = this.userService.findDs2AllUser();
        return user;
    }
}

  2.Service层

package com.example.demo02.service.impl;

import com.example.demo02.annotation.Ds;
import com.example.demo02.dao.UserDao;
import com.example.demo02.entity.User;
import com.example.demo02.service.IUserService;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;

import javax.annotation.Resource;
import java.util.List;

@Service("userService")
public class UserServiceImpl implements IUserService {

    @Resource(name = "userDao")
    public UserDao userDao;

    @Override
    @Ds("ds1")
    @Transactional
    public List<User> findDs1AllUser() {

        User user1 = new User();
        user1.setId("123");
        user1.setName("B");
        user1.setAge("56");
        user1.setAddress("北京市");
        userDao.insertUserToDs1(user1);

        List<User> users = userDao.findDs1AllUser();
        return users;
    }

    @Override
    @Ds("ds2")
    public List<User> findDs2AllUser() {
        List<User> user = userDao.findDs2AllUser();
        return user;
    }

}

  3.dao层

package com.example.demo02.dao;

import com.example.demo02.entity.User;
import org.springframework.stereotype.Repository;

import java.util.List;

@Repository("userDao")
public interface UserDao{

    List<User> findDs1AllUser();

    List<User> findDs2AllUser();

    void insertUserToDs1(User user);
}

  4.entity实体类

package com.example.demo02.entity;

public class User {

    private String id;

    private String name;

    private String age;

    private String address;

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getAge() {
        return age;
    }

    public void setAge(String age) {
        this.age = age;
    }

    public String getAddress() {
        return address;
    }

    public void setAddress(String address) {
        this.address = address;
    }
}

  5.SpringBoot入口启动类

package com.example.demo02;

import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.jdbc.DataSourceAutoConfiguration;
import org.springframework.transaction.annotation.EnableTransactionManagement;

/**
 * springboot入口类,此类需要在所有用到的package上层
 * exclude = {DataSourceAutoConfiguration.class}
 * 禁用springboot默认加载的application.properties单数据源配置
 */
@MapperScan("com.example.demo02.dao")
@EnableTransactionManagement //开启事务
@SpringBootApplication(exclude = {DataSourceAutoConfiguration.class})
public class Demo02Application {

    public static void main(String[] args) {
        SpringApplication.run(Demo02Application.class, args);
    }

}

  6.MyBatis映射SQL文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >

<mapper namespace="com.example.demo02.dao.UserDao">

    <insert id="insertUserToDs1" parameterType="com.example.demo02.entity.User">
        insert into test_user(id,name,age,address)
        value (#{id},#{name},#{age},#{address})
    </insert>

    <!-- 查询DS1所有user -->
    <select id="findDs1AllUser" resultType="com.example.demo02.entity.User">
        select
            id,
            name,
            age,
            address
        from
            m_user
    </select>

    <!-- 查询DS2所有user -->
    <select id="findDs2AllUser" resultType="com.example.demo02.entity.User">
        select
            id,
            name,
            age,
            address
        from
            d_user
    </select>

</mapper>

  7.application.yml 配置文件

server:
  port: 8088

spring:
  datasource:
    name: druidDataSource
    type: com.alibaba.druid.pool.DruidDataSource
    druid:
      ds1:
        url: jdbc:mysql://192.168.xxx.xxx:3306/test?useUnicode=true&characterEncoding=UTF-8
        username: root
        password: 123456
        driver-class-name: com.mysql.jdbc.Driver

        filters: stat,wall #配置监控统计拦截的filters，去掉后监控界面SQL无法进行统计，'wall'用于防火墙
        initial-size: 1 #初始化大小
        min-idle: 1 #最小连接数
        max-active: 20 #最大连接数
        max-wait: 60000 #获取连接等待超时时间
        time-between-eviction-runs-millis: 60000 #间隔多久才进行一次检测，检测需要关闭的空闲连接，单位毫秒
        min-evictable-idle-time-millis: 30000 #一个连接在池中最小生存的时间，单位是毫秒
        validation-query: SELECT 'x' #测试语句是否执行正确
        test-while-idle: true #指明连接是否被空闲连接回收器(如果有)进行检验.如果检测失败,则连接将被从池中去除
        test-on-borrow: false #借出连接时不要测试，否则很影响性能
        test-on-return: false
        pool-prepared-statements: false #打开PSCache，并指定每个连接上PSCache的大小。oracle设为true，mysql设为false。分库分表较多推荐设置为false
        max-pool-prepared-statement-per-connection-size: 20 #与Oracle数据库PSCache有关，在druid下可以设置的比较高
      ds2:
         url: jdbc:mysql://192.168.xxx.xxx:3306/test?useUnicode=true&characterEncoding=UTF-8
        username: root
        password: 123456
        driver-class-name: com.mysql.jdbc.Driver

        filters: stat,wall #配置监控统计拦截的filters，去掉后监控界面SQL无法进行统计，'wall'用于防火墙
        initial-size: 1 #初始化大小
        min-idle: 1 #最小连接数
        max-active: 20 #最大连接数
        max-wait: 60000 #获取连接等待超时时间
        time-between-eviction-runs-millis: 60000 #间隔多久才进行一次检测，检测需要关闭的空闲连接，单位毫秒
        min-evictable-idle-time-millis: 30000 #一个连接在池中最小生存的时间，单位是毫秒
        validation-query: SELECT 'x' #测试语句是否执行正确
        test-while-idle: true #指明连接是否被空闲连接回收器(如果有)进行检验.如果检测失败,则连接将被从池中去除
        test-on-borrow: false #借出连接时不要测试，否则很影响性能
        test-on-return: false
        pool-prepared-statements: false #打开PSCache，并指定每个连接上PSCache的大小。oracle设为true，mysql设为false。分库分表较多推荐设置为false
        max-pool-prepared-statement-per-connection-size: 20 #与Oracle数据库PSCache有关，在druid下可以设置的比较高

mybatis:
  mapper-locations: classpath:sqlmaps/*.xml
  type-aliases-package: com.example.demo02.entity

logging:
  level:
    com.example.demo02.dao: debug

  8.log4j.properties 配置文件

### #配置根Logger ###
log4j.rootLogger=info,stdout

### 输出到控制台 ###
log4j.appender.stdout=org.apache.log4j.ConsoleAppender
log4j.appender.stdout.Target=System.out
log4j.appender.stdout.layout=org.apache.log4j.PatternLayout
log4j.appender.stdout.layout.ConversionPattern=%d{yyy-MM-dd HH\:mm\:ss} %5p - %m%n

log4j.logger.com.report.dao=debug

  9.demo-web模块 pom依赖

<dependencies>
    <dependency>
        <groupId>com.example</groupId>
        <artifactId>demo-config</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </dependency>
    <!-- mysql驱动 -->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>5.1.34</version>
    </dependency>

    <!-- mybatis -->
    <dependency>
        <groupId>org.mybatis.spring.boot</groupId>
        <artifactId>mybatis-spring-boot-starter</artifactId>
        <version>1.3.2</version>
    </dependency>

</dependencies>

10.最外层 pom 依赖

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
        <exclusions>
            <exclusion>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-logging</artifactId>
            </exclusion>
        </exclusions>
    </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
        <exclusions>
            <exclusion>
                <groupId>org.junit.vintage</groupId>
                <artifactId>junit-vintage-engine</artifactId>
            </exclusion>
        </exclusions>
    </dependency>
</dependencies>

测试

       分别使用链接 http://localhost:8088/user/findDs2AllUser   和  http://localhost:8088/user/findDs1AllUser 访问，通过日志可以看到数据源已经成功切换

SpringBoot笔记(三)：基于注解，实现多数据源切换插图1

SpringBoot 基于注解，实现多数据源切换，介绍到此为止

如果本文对你有所帮助，那就给我点个赞呗 ^_^

End

赞(0) 打赏
未经允许不得转载：IDEA激活码 » SpringBoot笔记(三)：基于注解，实现多数据源切换
标签：

相关推荐

IDEA永久激活破解教程,IDEA激活码

pycharm激活破解教程,pycharm激活码

Java视频资源

Java电子书

DataGrip激活教程 Docker Git教程 IntellIJ idea IntelliJ IDEA激活码 Java Java IO Java基础 Java基础面试题 Java集合面试题 Java面试题 JVM JVM面试题 Linux MySQL MySQL面试题 Nginx PyCharm PyCharm激活 redis Redis SpringBoot SpringBoot SpringBoot面试题 Web开发 剑指Offer系列 多线程 多线程并发面试题 字符串面试题 数据库 数据库 数据结构与算法 未分类 爬虫 电子书 软件下载

一个分享Java & Python知识的社区
